Diametrically Magnetized Ring Strong Neodymium Magnets
| Price: | 1.0~2.0 USD |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail

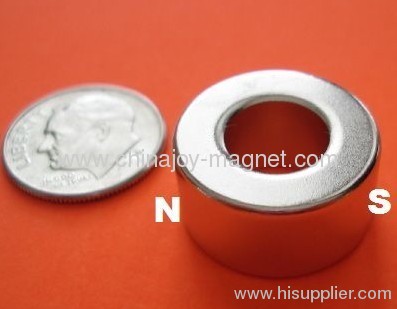

NdFeB Magnets N48 Rare Earth Neodymium Ring 0.5 inch OD x 0.25 inch ID x 0.25 inch
Diametrically Magnetized
Product Description:
NdFeB Magnets N48 Rare Earth Neodymium Ring 0.5 inch OD x 0.25 inch ID x 0.25 inch
Diametrically Magnetized
Diametrically Magnetized
Neodymium Rare Earth NdFeB Magnets are the world's strongest ring magnets. All magnets are not created equal! Applied Magnets offers the highest quality neodymium rare earth NdFeB magnets with consistent performance at lowest price. Our strong neodymium rare earth NdFeB magnets are designed & manufactured to meet stringent quality standards using the latest technology.
Neodymium magnets (also known as Neo magnets, NdFeB magnets, NIB or super magnets) , a type of rare earth magnets, is the permanent magnets made from neodymium, iron, boron and other minor elements.
Strong Neodymium NdFeB Magnets Grade N48, stronger than N45, N42, N40, N38 and N35
Neodymium magnets (also known as Neo magnets, NdFeB magnets, NIB or super magnets) , a type of rare earth magnets, is the permanent magnets made from neodymium, iron, boron and other minor elements.
Strong Neodymium NdFeB Magnets Grade N48, stronger than N45, N42, N40, N38 and N35
Nickel-Copper-Nickel triple layer coated for maximum rare earth magnets durability and protection again corrosion
Br Max: 14200 gauss
Br Max: 14200 gauss
Magnetized through the 1/2" Outside Diameter
Approximate pull force: 8 lbs
Contact us for neodymium ndfeb magnets wholesale volume discount
Material: Rare-earth magnet
Grade: From N35 to N50 and other grades are available
Coating: Ni,Zn,NiCuNi
Size: According to client's design
neodymium magnet
Grade: From N35 to N50 and other grades are available
Coating: Ni,Zn,NiCuNi
Size: According to client's design
neodymium magnet
1.Material:rare earth ,neodymium -Iron-Boron
2.Shape:Tile,Ring,Disc,Block,Cylinder,Tile,Arc,customers
2.Shape:Tile,Ring,Disc,Block,Cylinder,Tile,Arc,customers
3.Size:4X3mm,5X3mm,8X3mm,30X5mm,15X7mm or customized
4.Grade:N35-N52,N30M-N48M,N35SH-N45SH,etc.
4.Grade:N35-N52,N30M-N48M,N35SH-N45SH,etc.
5.Coating :NiCuNi, Ni,Zn,Gold,Silver,Epoxy,chemical plating Ni,etc.
6.Application: Sensors, Motors, Rotors, Wind turbines/wind generators, Loudspeakers, Magnetic hooks & holder, Filters, Automobiles, Jewelry.etc.
Neodymium magnet advantages
a) High energy
b) Very high Hc and Hci output
c) More economical than SmCo
d) Wonderful performance at ambient temperature
a) High energy
b) Very high Hc and Hci output
c) More economical than SmCo
d) Wonderful performance at ambient temperature
Transportation
All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
Buyer Guide
In order to quote you the best price quickly, please provide the following information:
1.Product size,grade,coating,etc.
2.Order quantity;
3.Attached the drawings if customized
4.Any special packing or other requirements
4.Any special packing or other requirements
Our advantage
1. Fast reply: all your enquiry will be replied within 24 hours;
2. Reasonable price: we are direct manufacturer and able to offer better price;
3. Good quality: we are experienced in quality control;
4. Fast delivery time:7-20 days.
NdFeB Magnetof Magnetic grade :
NdFeB Magnetof Magnetic grade :
Grade | BrmT(kGs) | HcbkA/m(kOe) | Hcj kA/m (kOe) | (BH)max kJ/m3 (MGOe) | Supreme work temperature(Tw) |
N33 | 1130-1170(11.3-11.7) | ≥ 836 ( ≥ 10.5) | ≥ 955( ≥ 12) | 247-271(31-34) | 80 ℃ |
N35 | 1170-1220(11.7-12.2) | ≥ 868( ≥ 10.9) | ≥ 955( ≥ 12) | 263-287(33-36) | 80 ℃ |
N38 | 1220-1250(12.2-12.5) | ≥ 899( ≥ 11.3) | ≥ 955( ≥ 12) | 287-310(36-39) | 80 ℃ |
N40 | 1250-1280(12.5-12.8) | ≥ 907( ≥ 11.4) | ≥ 955 ( ≥ 12) | 302-326(38-41) | 80 ℃ |
N42 | 1280-1320(12.8-13.2) | ≥ 915( ≥ 11.5) | ≥ 955( ≥ 12) | 318-342(40-43) | 80 ℃ |
N45 | 1320-1380(13.2-13.8) | ≥ 923( ≥ 11.6) | ≥ 955 ( ≥ 12) | 342-366(43-46) | 80 ℃ |
N48 | 1380-1420(13.8-14.2) | ≥ 923( ≥ 11.6) | ≥ 876( ≥ 12) | 366-390(46-49) | 80 ℃ |
N50 | 1400-1450(14.0-14.5) | ≥ 796( ≥ 10.0) | ≥ 876( ≥ 11) | 382-406(48-51) | 60 ℃ |
N52 | 1430-1480(14.3-14.8) | ≥ 796( ≥ 10.0) | ≥ 876( ≥ 11) | 398-422(50-53) | 60 ℃ |
30M | 1080-1130(10.8-11.3) | ≥ 796( ≥ 10.0) | ≥ 1114 ( ≥ 14) | 223-247(28-31) | 100 ℃ |
33M | 1130-1170(11.3-11.7) | ≥ 836( ≥ 10.5) | ≥ 1114( ≥ 14) | 247-263(31-33) | 100 ℃ |
35M | 1170-1220(11.7-12.2) | ≥ 868( ≥ 10.9) | ≥ 1114( ≥ 14) | 263-287(33-36) | 100 ℃ |
38M | 1220-1250(12.2-12.5) | ≥ 899( ≥ 11.3) | ≥ 1114( ≥ 14) | 287-310(36-39) | 100 ℃ |
40M | 1250-1280(12.5-12.8) | ≥ 923( ≥ 11.6) | ≥ 1114( ≥ 14) | 302-326(38-41) | 100 ℃ |
42M | 1280-1320(12.8-13.2) | ≥ 955( ≥ 12.0) | ≥ 1114( ≥ 14) | 318-342(40-43) | 100 ℃ |
45M | 1320-1380(13.2-13.8) | ≥ 995( ≥ 12.5) | ≥ 1114 ( ≥ 14) | 342-366 (43-46) | 100 ℃ |
48M | 1360-1430(13.6-14.3) | ≥ 1027( ≥ 12.9) | ≥ 1114( ≥ 14) | 366-390(46-49) | 100 ℃ |
50M | 1400-1450(14.0-14.5) | ≥ 1033 ( ≥ 13.0) | ≥ 1114( ≥ 14) | 382-406(48-51) | 100 ℃ |
30H | 1080-1130(10.8-11.3) | ≥ 796 ( ≥ 10.0) | ≥ 1353( ≥ 17) | 223-247(28-31) | 120 ℃ |
33H | 1130-1170(11.3-11.7) | ≥ 836 ( ≥ 10.5) | ≥ 1353( ≥ 17) | 247-271(31-34) | 120 ℃ |
35H | 1170-1220(11.7-12.2) | ≥ 868 ( ≥ 10.9) | ≥ 1353( ≥ 17) | 263-287(33-36) | 120 ℃ |
38H | 1220-1250(12.2-12.5) | ≥ 899 ( ≥ 11.3) | ≥ 1353 ( ≥ 17) | 287-310(36-39) | 120 ℃ |
40H | 1250-1280(12.5-12.8) | ≥ 923( ≥ 11.6) | ≥ 1353( ≥ 17) | 302-326(38-41) | 120 ℃ |
42H | 1280-1320(12.8-13.2) | ≥ 955 ( ≥ 12.0) | ≥ 1353( ≥ 17) | 318-342(40-43) | 120 ℃ |
45H | 1300-1360(13-13.6) | ≥ 963( ≥ 12.1) | ≥ 1353 ( ≥ 17) | 326-358(43-46) | 120 ℃ |
48H | 1370-1430(13.7-14.3) | ≥ 995( ≥ 12.5) | ≥ 1353( ≥ 17) | 366-390(46-49) | 120 ℃ |
30SH | 1080-1130(10.8-11.3) | ≥ 804( ≥ 10.1) | ≥ 1592( ≥ 20) | 223-247(28-31) | 150 ℃ |
33SH | 1130-1170(11.3-11.7) | ≥ 844( ≥ 10.6) | ≥ 1592( ≥ 20) | 247-271(31-34) | 150 ℃ |
35SH | 1170-1220(11.7-12.2) | ≥ 876 ( ≥ 11.0) | ≥ 1592( ≥ 20) | 263-287(33-36) | 150 ℃ |
38SH | 1220-1250(12.2-12.5) | ≥ 907( ≥ 11.4) | ≥ 1592( ≥ 20) | 287-310(36-39) | 150 ℃ |
40SH | 1240-1280(12.5-12.8) | ≥ 939( ≥ 11.8) | ≥ 1592( ≥ 20) | 302-326(38-41) | 150 ℃ |
42SH | 1280-1320(12.8-13.2) | ≥ 987 ( ≥ 12.4) | ≥ 1592 ( ≥ 20) | 318-342(40-43) | 150 ℃ |
45SH | 1320-1380(13.2-13.8) | ≥ 1003 ( ≥ 12.6) | ≥ 1592( ≥ 20) | 342-366 (43-46) | 150 ℃ |
28UH | 1020-1080 (10.2-10.8) | ≥ 764 ( ≥ 9.6) | ≥ 1990 ( ≥ 25) | 207-231(26-29) | 180 ℃ |
30UH | 1080-1130 (10.8-11.3) | ≥ 812( ≥ 10.2) | ≥ 1990( ≥ 25) | 223-247(28-31) | 180 ℃ |
33UH | 1130-1170(11.3-11.7) | ≥ 852( ≥ 10.7) | ≥ 1990 ( ≥ 25) | 247-271(31-34) | 180 ℃ |
35UH | 1180-1220 (11.8-12.2) | ≥ 860 ( ≥ 10.8) | ≥ 1990( ≥ 25) | 263-287(33-36) | 180 ℃ |
38UH | 1220-1250(12.2-12.5) | ≥ 876 ( ≥ 11.0) | ≥ 1990( ≥ 25) | 287-310(36-39) | 180 ℃ |
