Diametrically Magnetized Strong Magnets Neodymium

Price:	5.0~10.0 USD
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 0.5 inch x 1 inch N50

Packing: According to customer's req...

Type: Permanent

Shape: Cylinder

Coating: Nickel

Export Area: All of the World

Grade: N50

Production Capacity: 100 Metric Ton/Metric Tons ...

Delivery Date: 15-20 days

Composite: NdFeB Magnet

Application: Moto Magnet

Place of Origin: Zhejiang, China (Mainland)

Size: 0.5 inch x 1 inch

Cutting Tolerance: +/-0.05mm

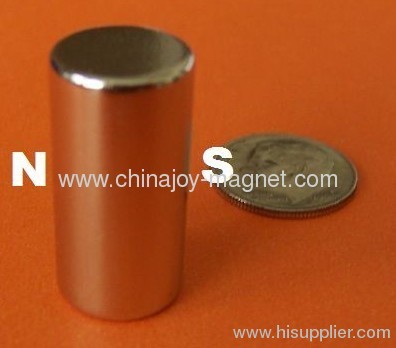

Strong Magnets 0.5 inch x 1 inch Thick Cylinder Neodymium Magnets N50
Diametrically Magnetized

Product Description:

Strong Magnets 0.5 inch x 1 inch Thick Cylinder Neodymium Magnets N50

Diametrically Magnetized

Neodymium magnets are the world's strongest magnets. All magnets are not created equal! Applied Magnets offers the highest quality strong magnets with consistent performance at lowest price. Our strong magnets are designed & manufactured to meet stringent quality standards using the latest technology.

Super Strong Magnets Neodymium Grade N50, stronger than N48, N45, N42, N40, N38 and N35

BrMax: 14500 gauss

Nickel-Copper-Nickel triple layer coated for maximum neodymium magnets protection and durability

Magnetized through the diameter 0.5 inch, poles are on the curved sides

Approximate pull force: 42 lbs

neodymium magnet :

1.Material:rare earth ,neodymium -Iron-Boron
2.Shape:Tile,Ring,Disc,Block,Cylinder,Tile,Arc,customers

3.Size:4X3mm,5X3mm,8X3mm,30X5mm,15X7mm or customized
4.Grade:N35-N52,N30M-N48M,N35SH-N45SH,etc.

5.Coating :NiCuNi, Ni,Zn,Gold,Silver,Epoxy,chemical plating Ni,etc.

6.Application: Sensors, Motors, Rotors, Wind turbines/wind generators, Loudspeakers, Magnetic hooks & holder, Filters, Automobiles, Jewelry.etc.

Neodymium magnet advantages
a) High energy
b) Very high Hc and Hci output
c) More economical than SmCo
d) Wonderful performance at ambient temperature

Transportation

All available shipping ways could be applied, by courier, by air or by sea.

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the cargos for you before the goods arrive.

Buyer Guide

In order to quote you the best price quickly, please provide the following information:

1.Product size,grade,coating,etc.

2.Order quantity;

3.Attached the drawings if customized
4.Any special packing or other requirements

Our advantage

1. Fast reply: all your enquiry will be replied within 24 hours;

2. Reasonable price: we are direct manufacturer and able to offer better price;

3. Good quality: we are experienced in quality control;

4. Fast delivery time:7-20 days.

Magnetic properties of main grades

Grade	Residual Induction		Coercive Force		Intrinsic Coercivity		Maximum Energy Product		TW
	Br		_BH_C		_IH_C		(BH)max.		TW
	kGs	T	kOe	kA/m	kOe	kA/m	MGOe	kJ/m³	℃
N33	11.3-11.7	1.13-1.17	≥10.5	≥836	≥12	≥955	31-33	247-263	80
N35	11.7-12.1	1.17-1.21	≥10.9	≥868	≥12	≥955	33-36	263-287	80
N38	12.1-12.5	1.21-1.25	≥11.3	≥899	≥12	≥955	36-39	287-310	80
N40	12.5-12.8	1.25-1.28	≥11.6	≥923	≥12	≥955	38-41	302-326	80
N42	12.8-13.2	1.28-1.32	≥11.6	≥923	≥12	≥955	40-43	318-342	80
N45	13.2-13.8	1.32-1.38	≥11.0	≥876	≥12	≥955	43-46	342-366	80
N48	13.8-14.2	1.38-1.42	≥10.5	≥835	≥11	≥876	46-49	366-390	80
33H	11.3-11.7	1.13-1.17	≥10.5	≥836	≥17	≥1353	31-34	247-271	120
35H	11.7-12.1	1.17-1.21	≥10.9	≥868	≥17	≥1353	33-36	263-287	120
38H	12.1-12.5	1.21-1.25	≥11.3	≥899	≥17	≥1353	36-39	287-310	120
40H	12.4-12.8	1.24-1.28	≥11.6	≥923	≥17	≥1353	38-41	302-326	120
42H	12.8-13.2	1.28-1.32	≥12.0	≥955	≥17	≥1353	40-43	318-342	120
33SH	11.3-11.7	1.13-1.17	≥10.6	≥844	≥20	≥1592	31-34	247-272	150
35SH	11.7-12.1	1.17-1.21	≥11.0	≥876	≥20	≥1592	33-36	263-287	150
38SH	12.1-12.5	1.21-1.25	≥11.4	≥907	≥20	≥1592	36-39	287-310	150
40SH	12.4-12.8	1.24-1.28	≥11.8	≥939	≥20	≥1592	38-41	302-326	150
28UH	10.2-10.8	1.02-1.08	≥9.6	≥764	≥25	≥1990	26-29	207-231	180
30UH	10.8-11.3	1.08-1.13	≥10.2	≥812	≥25	≥1990	28-31	223-247	180
33UH	11.3-11.7	1.13-1.17	≥10.7	≥852	≥25	≥1990	31-34	247-271	180
28EH	10.4-10.9	1.04-1.09	≥9.8	≥780	≥30	≥2388	26-29	207-231	200
30EH	10.8-11.3	1.08-1.13	≥10.2	≥812	≥30	≥2388	28-31	223-247	200

Note:
aB - reversible temperature coefficient of induction.

Shapes and sizes available (as standard):
Shapes: Blocks/plates, disks/rods, rings, segments
Two (four) poles
Note: More complicated shapes and any magnetic configuration can be provided by special order.

Standard sizes:

Blocks/plates

	Min, mm	Max, mm
W	2	70
T	1.5	50
L	1	15

Disks/rods with axial magnetic texture

	Min, mm	Max, mm
Dia	5	70
h	1.2	12

Disks/rods with diametrical magnetic texture

	Min, mm	Max, mm
Dia	2	12
h	1.2	40

Segments with axial magnetic texture

	Min, mm	Max, mm
OD	96	96
ID	48	55
h	5	12
Opening angle, degree	35	45

Segments with diametrical magnetic texture

	Min, mm	Max, mm
OD	50	120
ID	32	180
h	8	50
Opening angle, degree	30	60

Rings with axial magnetic texture

	Min, mm	Max, mm
OD	5	70
ID	3	26
h	1.2	40

Neodymium:
NdFeB, the third generation of rare-earth permanent magnet, has high remanence, high coercive force, high-energy product and high performance/cost ratio.

Neodymium Magnets are easily formed into various sizes and widely used in many fields such as magnets for aviation, electronics, instruments, meters, machine and medical instruments. Neodymium metal is used extensively to produce Nd-Fe-B magnets, which have energy densities as high as 27 to 35 million gauss oersteds.

They are the most compact magnets commercially available. It is especially suitable for the development of magnets for high-performance, compact and light products.

Material:NdFeB magnet
Grade:N35-N52,(M,H,SH,UH,EH)
Plated:NiCuNi
Magnetized:axially by thickness
Certificate:REACH,CE
Application:motor,magnetic separator.
Operating temp: max.80°

Versions up to 200° and any other dimension onrequest

Material: Neodymiummagnet, which canhold about anything you need to keep within easy reach.

Application: on therefrigerator for aprons, oven mitts or kitchen gadgets, office filing cabinetsor in a

school or gym locker.

For NdFeB magnet, it's with strongmagnetism:
Super strong neodymium magnet assembly with easy-clip carabineholder has 45 lbs. pull.

Use to hang a tool belt or otherheavy items to metal walls, beams and cabinets.

It works well in jobber vans,workshops, auto repair and service stations, or even in the warehouse. 1.125"diameter
Small quantity is acceptable too. Magnetic hooks are widely used inauto industry.
