1/2 in x 2 in Cylinder Diametrically Magnetized Neodymium Magnets

Price:	5.0~10.0 USD
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 1/2 in x 2 in N45

Packing: According to customer's req...

Type: Permanent

Shape: Cylinder

Coating: Nickel

Export Area: All of the World

Grade: N45

Production Capacity: 100 Metric Ton/Metric Tons ...

Delivery Date: 15-20 days

Composite: NdFeB Magnet

Application: Moto Magnet

Place of Origin: Zhejiang, China (Mainland)

Size: 1/2 in x 2 in

Cutting Tolerance: +/-0.05mm

1/2 x 2 inch Diametrically Magnetized Rare Earth Magnet Cylinder
BrMax: 13200 gauss
Strong Neodymium Magnet Grade N45

Product Description:

1/2 x 2 inch Diametrically Magnetized Rare Earth Magnet Cylinder

Magnetized through 1/2 inch diameter. Poles on the round surfaces.Neodymium Magnets are the strongest permanent magnets. All magnets are not created equal! Applied Magnets offers the highest quality magnets with consistent performance. These strong magnets are designed & manufactured to meet stringent quality standards using the latest technology.

Neodymium magnets (also known as Neo, NdFeB, NIB or super magnets) , a type of rare earth magnets, are permanent magnets made from neodymium, iron, boron and other minor elements.

Strong Neodymium Magnet Grade N45, stronger than N40, N38 and N35

BrMax: 13200 gauss

Nickel-Copper-Nickel triple layer coated for maximum durability and protection again corrosion

Neodymium Magnets 0.5 inch Diameter x 2 inch Thick Rare Earth Cylinder Magnet

Magnetized through the Thickness

Estimated pull force: 58 lbs

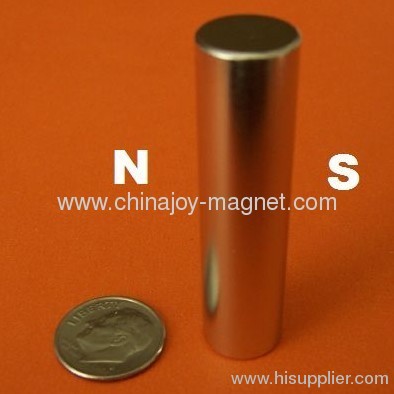

Diametrically Magnetized, magnetized through 1/2 inch diameter. Poles on the round surfaces.

Actual pull force of cylinder magnets may vary depending on different applications due to the small contact surface, please test them before usage

neodymium magnet :

1.Material:rare earth ,neodymium -Iron-Boron
2.Shape:Tile,Ring,Disc,Block,Cylinder,Tile,Arc,customers

3.Size:4X3mm,5X3mm,8X3mm,30X5mm,15X7mm or customized
4.Grade:N35-N52,N30M-N48M,N35SH-N45SH,etc.

5.Coating :NiCuNi, Ni,Zn,Gold,Silver,Epoxy,chemical plating Ni,etc.

6.Application: Sensors, Motors, Rotors, Wind turbines/wind generators, Loudspeakers, Magnetic hooks & holder, Filters, Automobiles, Jewelry.etc.

Neodymium magnet advantages
a) High energy
b) Very high Hc and Hci output
c) More economical than SmCo
d) Wonderful performance at ambient temperature

Transportation

All available shipping ways could be applied, by courier, by air or by sea.

Appointed shipping company or our own forwarders all could be used in shipment.

Full-way tracking the cargos for you before the goods arrive.

Buyer Guide

In order to quote you the best price quickly, please provide the following information:

1.Product size,grade,coating,etc.

2.Order quantity;

3.Attached the drawings if customized
4.Any special packing or other requirements

Our advantage

1. Fast reply: all your enquiry will be replied within 24 hours;

2. Reasonable price: we are direct manufacturer and able to offer better price;

3. Good quality: we are experienced in quality control;

4. Fast delivery time:7-20 days.

Magnetic properties of main grades

Grade	Residual Induction		Coercive Force		Intrinsic Coercivity		Maximum Energy Product		TW
	Br		_BH_C		_IH_C		(BH)max.		TW
	kGs	T	kOe	kA/m	kOe	kA/m	MGOe	kJ/m³	℃
N33	11.3-11.7	1.13-1.17	≥10.5	≥836	≥12	≥955	31-33	247-263	80
N35	11.7-12.1	1.17-1.21	≥10.9	≥868	≥12	≥955	33-36	263-287	80
N38	12.1-12.5	1.21-1.25	≥11.3	≥899	≥12	≥955	36-39	287-310	80
N40	12.5-12.8	1.25-1.28	≥11.6	≥923	≥12	≥955	38-41	302-326	80
N42	12.8-13.2	1.28-1.32	≥11.6	≥923	≥12	≥955	40-43	318-342	80
N45	13.2-13.8	1.32-1.38	≥11.0	≥876	≥12	≥955	43-46	342-366	80
N48	13.8-14.2	1.38-1.42	≥10.5	≥835	≥11	≥876	46-49	366-390	80
33H	11.3-11.7	1.13-1.17	≥10.5	≥836	≥17	≥1353	31-34	247-271	120
35H	11.7-12.1	1.17-1.21	≥10.9	≥868	≥17	≥1353	33-36	263-287	120
38H	12.1-12.5	1.21-1.25	≥11.3	≥899	≥17	≥1353	36-39	287-310	120
40H	12.4-12.8	1.24-1.28	≥11.6	≥923	≥17	≥1353	38-41	302-326	120
42H	12.8-13.2	1.28-1.32	≥12.0	≥955	≥17	≥1353	40-43	318-342	120
33SH	11.3-11.7	1.13-1.17	≥10.6	≥844	≥20	≥1592	31-34	247-272	150
35SH	11.7-12.1	1.17-1.21	≥11.0	≥876	≥20	≥1592	33-36	263-287	150
38SH	12.1-12.5	1.21-1.25	≥11.4	≥907	≥20	≥1592	36-39	287-310	150
40SH	12.4-12.8	1.24-1.28	≥11.8	≥939	≥20	≥1592	38-41	302-326	150
28UH	10.2-10.8	1.02-1.08	≥9.6	≥764	≥25	≥1990	26-29	207-231	180
30UH	10.8-11.3	1.08-1.13	≥10.2	≥812	≥25	≥1990	28-31	223-247	180
33UH	11.3-11.7	1.13-1.17	≥10.7	≥852	≥25	≥1990	31-34	247-271	180
28EH	10.4-10.9	1.04-1.09	≥9.8	≥780	≥30	≥2388	26-29	207-231	200
30EH	10.8-11.3	1.08-1.13	≥10.2	≥812	≥30	≥2388	28-31	223-247	200

Note:
aB - reversible temperature coefficient of induction.

Shapes and sizes available (as standard):
Shapes: Blocks/plates, disks/rods, rings, segments
Two (four) poles
Note: More complicated shapes and any magnetic configuration can be provided by special order.

Standard sizes:

Blocks/plates

	Min, mm	Max, mm
W	2	70
T	1.5	50
L	1	15

Disks/rods with axial magnetic texture

	Min, mm	Max, mm
Dia	5	70
h	1.2	12

Disks/rods with diametrical magnetic texture

	Min, mm	Max, mm
Dia	2	12
h	1.2	40

Segments with axial magnetic texture

	Min, mm	Max, mm
OD	96	96
ID	48	55
h	5	12
Opening angle, degree	35	45

Segments with diametrical magnetic texture

	Min, mm	Max, mm
OD	50	120
ID	32	180
h	8	50
Opening angle, degree	30	60

Rings with axial magnetic texture

	Min, mm	Max, mm
OD	5	70
ID	3	26
h	1.2	40

Neodymium:
NdFeB, the third generation of rare-earth permanent magnet, has high remanence, high coercive force, high-energy product and high performance/cost ratio.

Neodymium Magnets are easily formed into various sizes and widely used in many fields such as magnets for aviation, electronics, instruments, meters, machine and medical instruments. Neodymium metal is used extensively to produce Nd-Fe-B magnets, which have energy densities as high as 27 to 35 million gauss oersteds.

They are the most compact magnets commercially available. It is especially suitable for the development of magnets for high-performance, compact and light products.

Material:NdFeB magnet
Grade:N35-N52,(M,H,SH,UH,EH)
Plated:NiCuNi
Magnetized:axially by thickness
Certificate:REACH,CE
Application:motor,magnetic separator.
Operating temp: max.80°

Versions up to 200° and any other dimension onrequest

Material: Neodymiummagnet, which canhold about anything you need to keep within easy reach.

Application: on therefrigerator for aprons, oven mitts or kitchen gadgets, office filing cabinetsor in a

school or gym locker.

For NdFeB magnet, it's with strongmagnetism:
Super strong neodymium magnet assembly with easy-clip carabineholder has 45 lbs. pull.

Use to hang a tool belt or otherheavy items to metal walls, beams and cabinets.

It works well in jobber vans,workshops, auto repair and service stations, or even in the warehouse. 1.125"diameter
Small quantity is acceptable too. Magnetic hooks are widely used inauto industry.

Product Name: Motor Magnet, Segment, Arc ndfeb magnet, Arc Magnets.Tile NdFeB Magnet

It is one special shape of Rare earth magnets and permanent magnets. It is always manufactured via Wire Cutting and grinding etc. Regular Arc magnets or Segment magnets have the following important factors such as, Outer Diameter or Outer Radius, Inner Diameter or Inner Radius, Degree of Angle, Thickness, Length, Round Edge etc.

Applications:

Motors, eg. voice coil motor (VCM),step motor, geared down motor, etc.

Features:

Generally speaking, Arc Magnets are all made as Customer Design and as Special requirement. Our factory production and manufacture magnets according to customer's design on shape, dimension, grades, coatings etc.

Magnets grade: From N35 to N50, from N Series to UH Series.
Magnets drawing with size and shape and different side view
Magnetism direction: Mostly magnetized via diameter, if special magnetism direction, please show on the drawing in advance.
Magnets coating: Nickel, Zn, Black Epoxy, Black Nickel ,Nickel -Cu-Nickel,Ag, Au etc.
Quantities: More mass order quantities. More lower the prices. Original manufacture.
