Ningbo Joy Industrial & Trading Co.,Ltd.
|
with 1/4 in Hole Diametrically Magnetized Neodymium Magnets
| Price: | 16.0~20.0 USD |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail

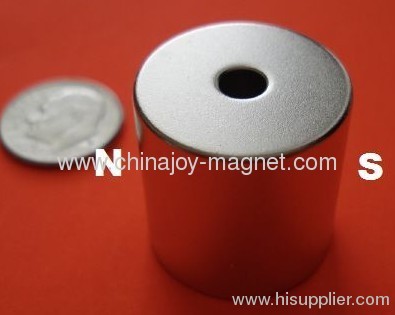

Neodymium Magnet 1 inch x 1 inch Rare Earth NdFeB Magnet Cylinder with 0.25" Center Hole
Diametrically Magnetized
Product Description:
Neodymium Magnet 1 inch x 1 inch Rare Earth NdFeB Magnet Cylinder with 0.25" Center Hole
Diametrically Magnetized
Neodymium magnet is the world's strongest magnet. All magnets are not created equal! Applied Magnets offers the highest quality magnets with consistent performance at lowest price. Our strong magnets are designed & manufactured to meet stringent quality standards using the latest technology.
Neodymium magnet (also known as Neo, NdFeB, NIB or super magnet) , a type of rare earth magnet, is a permanent magnet made from neodymium, iron, boron and other minor elements.
Strong Magnet Grade N42 , stronger than N40, N38 and N35
BrMax: 13200 gauss
Nickel-Copper-Nickel triple layer coated for maximum protection and durability
Diametrically Magnetized
Neodymium magnet is the world's strongest magnet. All magnets are not created equal! Applied Magnets offers the highest quality magnets with consistent performance at lowest price. Our strong magnets are designed & manufactured to meet stringent quality standards using the latest technology.
Neodymium magnet (also known as Neo, NdFeB, NIB or super magnet) , a type of rare earth magnet, is a permanent magnet made from neodymium, iron, boron and other minor elements.
Strong Magnet Grade N42 , stronger than N40, N38 and N35
BrMax: 13200 gauss
Nickel-Copper-Nickel triple layer coated for maximum protection and durability
Magnetized through the 1" diameter
Approximate pull force: 60 lbs
neodymium magnet :
1.Material:rare earth ,neodymium -Iron-Boron
2.Shape:Tile,Ring,Disc,Block,Cylinder,Tile,Arc,customers
2.Shape:Tile,Ring,Disc,Block,Cylinder,Tile,Arc,customers
3.Size:4X3mm,5X3mm,8X3mm,30X5mm,15X7mm or customized
4.Grade:N35-N52,N30M-N48M,N35SH-N45SH,etc.
4.Grade:N35-N52,N30M-N48M,N35SH-N45SH,etc.
5.Coating :NiCuNi, Ni,Zn,Gold,Silver,Epoxy,chemical plating Ni,etc.
6.Application: Sensors, Motors, Rotors, Wind turbines/wind generators, Loudspeakers, Magnetic hooks & holder, Filters, Automobiles, Jewelry.etc.
Neodymium magnet advantages
a) High energy
b) Very high Hc and Hci output
c) More economical than SmCo
d) Wonderful performance at ambient temperature
a) High energy
b) Very high Hc and Hci output
c) More economical than SmCo
d) Wonderful performance at ambient temperature
Transportation
All available shipping ways could be applied, by courier, by air or by sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you before the goods arrive.
Buyer Guide
In order to quote you the best price quickly, please provide the following information:
1.Product size,grade,coating,etc.
2.Order quantity;
3.Attached the drawings if customized
4.Any special packing or other requirements
4.Any special packing or other requirements
Our advantage
1. Fast reply: all your enquiry will be replied within 24 hours;
2. Reasonable price: we are direct manufacturer and able to offer better price;
3. Good quality: we are experienced in quality control;
4. Fast delivery time:7-20 days.
NdFeB Magnetof Magnetic grade :
Material:NdFeB magnet
Grade:N35-N52,(M,H,SH,UH,EH)
Plated:NiCuNi
Magnetized:axially by thickness
Certificate:REACH,CE
Application:motor,magnetic separator.
Operating temp: max.80°
NdFeB Magnetof Magnetic grade :
Grade | BrmT(kGs) | HcbkA/m(kOe) | Hcj kA/m (kOe) | (BH)max kJ/m3 (MGOe) | Supreme work temperature(Tw) |
N33 | 1130-1170(11.3-11.7) | ≥ 836 ( ≥ 10.5) | ≥ 955( ≥ 12) | 247-271(31-34) | 80 ℃ |
N35 | 1170-1220(11.7-12.2) | ≥ 868( ≥ 10.9) | ≥ 955( ≥ 12) | 263-287(33-36) | 80 ℃ |
N38 | 1220-1250(12.2-12.5) | ≥ 899( ≥ 11.3) | ≥ 955( ≥ 12) | 287-310(36-39) | 80 ℃ |
N40 | 1250-1280(12.5-12.8) | ≥ 907( ≥ 11.4) | ≥ 955 ( ≥ 12) | 302-326(38-41) | 80 ℃ |
N42 | 1280-1320(12.8-13.2) | ≥ 915( ≥ 11.5) | ≥ 955( ≥ 12) | 318-342(40-43) | 80 ℃ |
N45 | 1320-1380(13.2-13.8) | ≥ 923( ≥ 11.6) | ≥ 955 ( ≥ 12) | 342-366(43-46) | 80 ℃ |
N48 | 1380-1420(13.8-14.2) | ≥ 923( ≥ 11.6) | ≥ 876( ≥ 12) | 366-390(46-49) | 80 ℃ |
N50 | 1400-1450(14.0-14.5) | ≥ 796( ≥ 10.0) | ≥ 876( ≥ 11) | 382-406(48-51) | 60 ℃ |
N52 | 1430-1480(14.3-14.8) | ≥ 796( ≥ 10.0) | ≥ 876( ≥ 11) | 398-422(50-53) | 60 ℃ |
30M | 1080-1130(10.8-11.3) | ≥ 796( ≥ 10.0) | ≥ 1114 ( ≥ 14) | 223-247(28-31) | 100 ℃ |
33M | 1130-1170(11.3-11.7) | ≥ 836( ≥ 10.5) | ≥ 1114( ≥ 14) | 247-263(31-33) | 100 ℃ |
35M | 1170-1220(11.7-12.2) | ≥ 868( ≥ 10.9) | ≥ 1114( ≥ 14) | 263-287(33-36) | 100 ℃ |
38M | 1220-1250(12.2-12.5) | ≥ 899( ≥ 11.3) | ≥ 1114( ≥ 14) | 287-310(36-39) | 100 ℃ |
40M | 1250-1280(12.5-12.8) | ≥ 923( ≥ 11.6) | ≥ 1114( ≥ 14) | 302-326(38-41) | 100 ℃ |
42M | 1280-1320(12.8-13.2) | ≥ 955( ≥ 12.0) | ≥ 1114( ≥ 14) | 318-342(40-43) | 100 ℃ |
45M | 1320-1380(13.2-13.8) | ≥ 995( ≥ 12.5) | ≥ 1114 ( ≥ 14) | 342-366 (43-46) | 100 ℃ |
48M | 1360-1430(13.6-14.3) | ≥ 1027( ≥ 12.9) | ≥ 1114( ≥ 14) | 366-390(46-49) | 100 ℃ |
50M | 1400-1450(14.0-14.5) | ≥ 1033 ( ≥ 13.0) | ≥ 1114( ≥ 14) | 382-406(48-51) | 100 ℃ |
30H | 1080-1130(10.8-11.3) | ≥ 796 ( ≥ 10.0) | ≥ 1353( ≥ 17) | 223-247(28-31) | 120 ℃ |
33H | 1130-1170(11.3-11.7) | ≥ 836 ( ≥ 10.5) | ≥ 1353( ≥ 17) | 247-271(31-34) | 120 ℃ |
35H | 1170-1220(11.7-12.2) | ≥ 868 ( ≥ 10.9) | ≥ 1353( ≥ 17) | 263-287(33-36) | 120 ℃ |
38H | 1220-1250(12.2-12.5) | ≥ 899 ( ≥ 11.3) | ≥ 1353 ( ≥ 17) | 287-310(36-39) | 120 ℃ |
40H | 1250-1280(12.5-12.8) | ≥ 923( ≥ 11.6) | ≥ 1353( ≥ 17) | 302-326(38-41) | 120 ℃ |
42H | 1280-1320(12.8-13.2) | ≥ 955 ( ≥ 12.0) | ≥ 1353( ≥ 17) | 318-342(40-43) | 120 ℃ |
45H | 1300-1360(13-13.6) | ≥ 963( ≥ 12.1) | ≥ 1353 ( ≥ 17) | 326-358(43-46) | 120 ℃ |
48H | 1370-1430(13.7-14.3) | ≥ 995( ≥ 12.5) | ≥ 1353( ≥ 17) | 366-390(46-49) | 120 ℃ |
30SH | 1080-1130(10.8-11.3) | ≥ 804( ≥ 10.1) | ≥ 1592( ≥ 20) | 223-247(28-31) | 150 ℃ |
33SH | 1130-1170(11.3-11.7) | ≥ 844( ≥ 10.6) | ≥ 1592( ≥ 20) | 247-271(31-34) | 150 ℃ |
35SH | 1170-1220(11.7-12.2) | ≥ 876 ( ≥ 11.0) | ≥ 1592( ≥ 20) | 263-287(33-36) | 150 ℃ |
38SH | 1220-1250(12.2-12.5) | ≥ 907( ≥ 11.4) | ≥ 1592( ≥ 20) | 287-310(36-39) | 150 ℃ |
40SH | 1240-1280(12.5-12.8) | ≥ 939( ≥ 11.8) | ≥ 1592( ≥ 20) | 302-326(38-41) | 150 ℃ |
42SH | 1280-1320(12.8-13.2) | ≥ 987 ( ≥ 12.4) | ≥ 1592 ( ≥ 20) | 318-342(40-43) | 150 ℃ |
45SH | 1320-1380(13.2-13.8) | ≥ 1003 ( ≥ 12.6) | ≥ 1592( ≥ 20) | 342-366 (43-46) | 150 ℃ |
28UH | 1020-1080 (10.2-10.8) | ≥ 764 ( ≥ 9.6) | ≥ 1990 ( ≥ 25) | 207-231(26-29) | 180 ℃ |
30UH | 1080-1130 (10.8-11.3) | ≥ 812( ≥ 10.2) | ≥ 1990( ≥ 25) | 223-247(28-31) | 180 ℃ |
33UH | 1130-1170(11.3-11.7) | ≥ 852( ≥ 10.7) | ≥ 1990 ( ≥ 25) | 247-271(31-34) | 180 ℃ |
35UH | 1180-1220 (11.8-12.2) | ≥ 860 ( ≥ 10.8) | ≥ 1990( ≥ 25) | 263-287(33-36) | 180 ℃ |
38UH | 1220-1250(12.2-12.5) | ≥ 876 ( ≥ 11.0) | ≥ 1990( ≥ 25) | 287-310(36-39) | 180 ℃ |
Neodymium:
NdFeB, the third generation of rare-earth permanent magnet, has high remanence, high coercive force, high-energy product and high performance/cost ratio.
NdFeB, the third generation of rare-earth permanent magnet, has high remanence, high coercive force, high-energy product and high performance/cost ratio.
Neodymium Magnets are easily formed into various sizes and widely used in many fields such as magnets for aviation, electronics, instruments, meters, machine and medical instruments. Neodymium metal is used extensively to produce Nd-Fe-B magnets, which have energy densities as high as 27 to 35 million gauss oersteds.
They are the most compact magnets commercially available. It is especially suitable for the development of magnets for high-performance, compact and light products.
Material:NdFeB magnet
Grade:N35-N52,(M,H,SH,UH,EH)
Plated:NiCuNi
Magnetized:axially by thickness
Certificate:REACH,CE
Application:motor,magnetic separator.
Operating temp: max.80°
Versions up to 200° and any other dimension onrequest
Material: Neodymiummagnet, which canhold about anything you need to keep within easy reach.
Application: on therefrigerator for aprons, oven mitts or kitchen gadgets, office filing cabinetsor in a
school or gym locker.
For NdFeB magnet, it's with strongmagnetism:
Super strong neodymium magnet assembly with easy-clip carabineholder has 45 lbs. pull.
Super strong neodymium magnet assembly with easy-clip carabineholder has 45 lbs. pull.
Use to hang a tool belt or otherheavy items to metal walls, beams and cabinets.
It works well in jobber vans,workshops, auto repair and service stations, or even in the warehouse. 1.125"diameter
Small quantity is acceptable too. Magnetic hooks are widely used inauto industry.
Small quantity is acceptable too. Magnetic hooks are widely used inauto industry.
