Bar Magnets 1 in x 1/2 in x 1/8 in w/2 Countersunk Holes Neodymium from China manufacturer

Bar Magnets 1 in x 1/2 in x 1/8 in w/2 Countersunk Holes Neodymium

Price:	1.1~1.3 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: N42 1" x 0.5" x 0.125" Thic...

Production Capacity: 100 Metric Ton/Metric Tons ...

Delivery Date: 15-20 days

Grade: N42

Plating: Nickel

Export Area: All of the World

Size: 1" x 0.5" x 0.125" Thick

Appliaction: Moto Magnet

Means of Transport: Ocean,Air

Packing: According to customer's req...

Composite: NdFeB

Type: Permanent

Place of Origin: Zhejiang, China (Mainland)

Cutting Tolerance: +/-0.05mm

Shape: Block

Br Max: 13200 gauss
Neodymium magnets Block N45 1" x 0.5" x 0.125" Thick Rare Earth Magnet

Product Description:

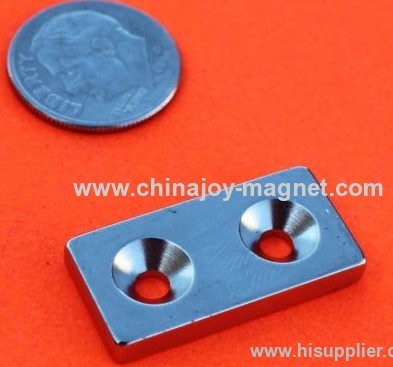

Bar Magnets Strong N42 Neodymium Rare Earth Magnets - 1" x 1/2" x 1/8" Thick with two countersunk holes

There are two tapered counter sunk holes on each magnet

0.25 inch x 0.125 inch 90 degree tapered hole countersunk holes works with #4 flat head screws

1/2" hole center to hole center

Neodymium Bar Magnets are the world's strongest bar magnets. All magnets are not created equal! Applied Magnets offers the highest quality bar magnets with consistent performance at lowest price. Our strong bar magnets are designed & manufactured to meet stringent quality standards using the latest technology.

Powerful Grade N42 Neodymium Bar Magnets , stronger than N40, N38 and N35

BrMax: 13200 gauss

Nickel-Copper-Nickel triple layer coated for maximum neodymium magnets durability and protection again corrosion

ISO Certified, top notch quality and superior performance guaranteed

Magnetized through the 1/8" Thickness

Approximate pull force: over 11 lbs

2 Countersunk Holes NeodymiumBar Magnets 1 in x 1/2 in x 1/8 in

Magnetic Properties of Sintered NdFeB Magnets

Grade	Remanence		Coercivity Force		Intrinsic Coercive Force		Max. Energy Product		maximum Operating Temp.
	Br		Hcb		Hcj		£¨ BH £© max
	mT	kGs	kA/m	kOe	kA/m	kOe	kJ/m3	MGOe
N27	1030-1080	10.3-10.8	≥796	≥10.0	≥955	≥12	199-231	25-29	80 °C
N30	1080-1130	10.8-11.3	≥796	≥10.0	≥955	≥12	223-247	28-31	80 °C
N33	1130-1170	11.3-11.7	≥836	≥10.5	≥955	≥12	247-271	31-34	80 °C
N35	1170-1220	11.7-12.2	≥868	≥10.9	≥955	≥12	263-287	33-36	80 °C
N38	1220-1250	12.2-12.5	≥899	≥11.3	≥955	≥12	287-310	36-39	80 °C
N40	1250-1280	12.5-12.8	≥907	≥11.4	≥955	≥12	302-326	38-41	80 °C
N42	1280-1320	12.8-13.2	≥915	≥11.5	≥955	≥12	318-342	40-43	80 °C
N45	1320-1380	13.2-13.8	≥923	≥11.6	≥955	≥12	342-366	43-46	80 °C
N48	1380-1420	13.8-14.2	≥923	≥11.6	≥876	≥12	366-390	46-49	80 °C
N50	1400-1450	14.0-14.5	≥796	≥10.0	≥876	≥11	382-406	48-51	60 °C
N52	1430-1480	14.3-14.8	≥796	≥10.0	≥876	≥11	398-422	50-53	60 °C

NdFeB, the third generation of rare-earth permanent magnet, has high remanence, high coercive force, high-energy product and high performance/cost ratio.

Neodymium Magnets are easily formed into various sizes and widely used in many fields such as magnets for aviation, electronics, instruments, meters, machine and medical instruments. Neodymium metal is used extensively to produce Nd-Fe-B magnets, which have energy densities as high as 27 to 35 million gauss oersteds.

They are the most compact magnets commercially available. It is especially suitable for the development of magnets for high-performance, compact and light products.

Specification:

1. Meterial: Neodymium, NdFeB

2. Magnetic properties:High coercive force, the max operation temp is up to 200 degree centigrade or 380 curie temperature;

3. Grades: N33-N52, 33M-48M, 33H-48H, 30SH-45SH, 30UH-38UH and 30EH-35EH;

4. Shapes and sizes:Various kinds or according to customers' request .

5. Coatings: Ni, Zn, Phosphating, epoxy and so on;
6. Motor magnet Applications:Widely used in different applications, such as sensors, motors, rotors, wind turbines/wind generators, loudspeakers, magnetic hooks, magnetic holder, filters automobiles and so on.

7. Quality Control : Our QC team consistsof more than 12 professional people to ensure 100% products high quality .

8. Extremer Power Warming : These magnets are dangerous !If your fingers are trapped between two they will cut your skin. Please be note they shouldonly be handled with great care .

9. Transportation :All available shipping ways could be applied ,by courier ,by air or by sea . Appinted shipping company or our own forwarders all could be used in shipment .Full-way tracking the cargos for you before th good arrival .

Our factory can also manufacture various sizes of other NdFeB magnets, according to the customer's specification
