Product Description:
Neodymium magnets are the world's strongest magnets. All magnets are not created equal! Applied Magnets offers the highest quality neodymium magnets with consistent performance at lowest price. Our strong neodymium magnets are designed & manufactured to meet stringent quality standards using the latest technology.
Neodymium magnets (also known as Neo, NdFeB, NIB or super magnets), a type of rare earth magnets, are the permanent magnets made from neodymium, iron, boron and other minor elements.
Strong Neodymium Magnets N48, stronger than N45, N42, N40, N38 and N35
BrMax: 14200 gauss

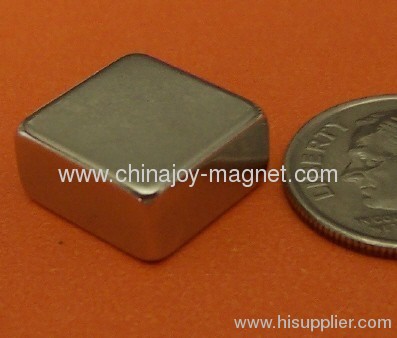

Neodymium Magnets 0.5 inch x 0.5 inch x 0.25 inch Thick Rare Earth NdFeB Block
Nickel-Copper-Nickel triple layer coated for maximum neodymium rare earth magnets durability and protection again corrosion.
ISO Certified, top notch quality and superior performance guaranteed.
Magnetized through the Thickness
Contact us for rare earth magnets wholesale discount
Approximate pulling force: over 15.5 lbs
Sintered neodymium magnets
Product specifications:
1. neodymium disc magnets with different grades of: N35,N38,N40,N42,N45,N48,N50,N52(M,H,SH,UH,EH) etc.
2. Working temperature for neodymium disc magnets:from 80 centigrades to 200 centigrades.
3. Can be magnetized according to the requirements of clients.
4. Coatings: Ni, Zn, epoxy, NiCuNi, gold,silver, Cr and so on(as per the requirements).
5. NdFeB magnet has super strong magnetic force and high intrinsic coercive force.
6. With precise tolerance.
Application for NdFeB magnet:
Magnetic separator, Sensors, Wind generators,Vibration motors,DC motors, Servo motors,Linear motors,VCM,MRI,Loudspeakers,Linear actuators,drives,toys,bags,household appliances,microphone parts,transmission equipments..
Features of NdFeB magnet :
Neodymium magnets are mainly made from neodymium ,iron, and boron. It is the ideal magnetic material in the world till now and have been used universally in the world . It has super strong magnetic force and high intrinsic coercive force and after concocting , it can stand very high working temperature, as high as 200 centigrade.
All These special features of NdFeN material make it irreplaceable in the world.
So till now, it has universally been used in electronics, aviation, motors, automobiles, medical apparatus,
transmission machine... and even in many details of our everyday life.
Magnetic properties of main grades
Grade | Residual Induction | Coercive Force | Intrinsic Coercivity | Maximum Energy Product | TW |
Br | BHC | IHC | (BH)max. |
kGs | T | kOe | kA/m | kOe | kA/m | MGOe | kJ/m3 | ℃ |
N33 | 11.3-11.7 | 1.13-1.17 | ≥10.5 | ≥836 | ≥12 | ≥955 | 31-33 | 247-263 | 80 |
N35 | 11.7-12.1 | 1.17-1.21 | ≥10.9 | ≥868 | ≥12 | ≥955 | 33-36 | 263-287 | 80 |
N38 | 12.1-12.5 | 1.21-1.25 | ≥11.3 | ≥899 | ≥12 | ≥955 | 36-39 | 287-310 | 80 |
N40 | 12.5-12.8 | 1.25-1.28 | ≥11.6 | ≥923 | ≥12 | ≥955 | 38-41 | 302-326 | 80 |
N42 | 12.8-13.2 | 1.28-1.32 | ≥11.6 | ≥923 | ≥12 | ≥955 | 40-43 | 318-342 | 80 |
N45 | 13.2-13.8 | 1.32-1.38 | ≥11.0 | ≥876 | ≥12 | ≥955 | 43-46 | 342-366 | 80 |
N48 | 13.8-14.2 | 1.38-1.42 | ≥10.5 | ≥835 | ≥11 | ≥876 | 46-49 | 366-390 | 80 |
33H | 11.3-11.7 | 1.13-1.17 | ≥10.5 | ≥836 | ≥17 | ≥1353 | 31-34 | 247-271 | 120 |
35H | 11.7-12.1 | 1.17-1.21 | ≥10.9 | ≥868 | ≥17 | ≥1353 | 33-36 | 263-287 | 120 |
38H | 12.1-12.5 | 1.21-1.25 | ≥11.3 | ≥899 | ≥17 | ≥1353 | 36-39 | 287-310 | 120 |
40H | 12.4-12.8 | 1.24-1.28 | ≥11.6 | ≥923 | ≥17 | ≥1353 | 38-41 | 302-326 | 120 |
42H | 12.8-13.2 | 1.28-1.32 | ≥12.0 | ≥955 | ≥17 | ≥1353 | 40-43 | 318-342 | 120 |
33SH | 11.3-11.7 | 1.13-1.17 | ≥10.6 | ≥844 | ≥20 | ≥1592 | 31-34 | 247-272 | 150 |
35SH | 11.7-12.1 | 1.17-1.21 | ≥11.0 | ≥876 | ≥20 | ≥1592 | 33-36 | 263-287 | 150 |
38SH | 12.1-12.5 | 1.21-1.25 | ≥11.4 | ≥907 | ≥20 | ≥1592 | 36-39 | 287-310 | 150 |
40SH | 12.4-12.8 | 1.24-1.28 | ≥11.8 | ≥939 | ≥20 | ≥1592 | 38-41 | 302-326 | 150 |
28UH | 10.2-10.8 | 1.02-1.08 | ≥9.6 | ≥764 | ≥25 | ≥1990 | 26-29 | 207-231 | 180 |
30UH | 10.8-11.3 | 1.08-1.13 | ≥10.2 | ≥812 | ≥25 | ≥1990 | 28-31 | 223-247 | 180 |
33UH | 11.3-11.7 | 1.13-1.17 | ≥10.7 | ≥852 | ≥25 | ≥1990 | 31-34 | 247-271 | 180 |
28EH | 10.4-10.9 | 1.04-1.09 | ≥9.8 | ≥780 | ≥30 | ≥2388 | 26-29 | 207-231 | 200 |
30EH | 10.8-11.3 | 1.08-1.13 | ≥10.2 | ≥812 | ≥30 | ≥2388 | 28-31 | 223-247 | 200 |
Note:
aB - reversible temperature coefficient of induction.
Shapes and sizes available (as standard):
Shapes: Blocks/plates, disks/rods, rings, segments
Two (four) poles
Note: More complicated shapes and any magnetic configuration can be provided by special order.
Standard sizes:
Blocks/plates
| Min, mm | Max, mm |
W | 2 | 70 |
T | 1.5 | 50 |
L | 1 | 15 |
Disks/rods with axial magnetic texture
| Min, mm | Max, mm |
Dia | 5 | 70 |
h | 1.2 | 12 |
Disks/rods with diametrical magnetic texture
| Min, mm | Max, mm |
Dia | 2 | 12 |
h | 1.2 | 40 |
Segments with axial magnetic texture
| Min, mm | Max, mm |
OD | 96 | 96 |
ID | 48 | 55 |
h | 5 | 12 |
Opening angle, degree | 35 | 45 |
Segments with diametrical magnetic texture
| Min, mm | Max, mm |
OD | 50 | 120 |
ID | 32 | 180 |
h | 8 | 50 |
Opening angle, degree | 30 | 60 |
Rings with axial magnetic texture
| Min, mm | Max, mm |
OD | 5 | 70 |
ID | 3 | 26 |
h | 1.2 | 40 |
