N35 to N50 different grades sintered NdFeB magnets from China manufacturer

N35 to N50 different grades sintered NdFeB magnets

Price:	1.0~10.0 USD
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: sintered NdFeB

Packing: According to customer's req...

Type: Permanent

Application: Industrial Magnet

Grade: From N35 to N50 and other g...

Place of Origin: Zhejiang, China (Mainland)

Size: Custom Request

Production Capacity: 100 Metric Ton/Metric Tons ...

Delivery Date: 15-20 days

Composite: NdFeB Magnet

Shape: Arc, block, ring, disc

Platings: Nickel

Tollerance: +/-0.05mm

Export Area: All of the World

NdFeB Segment, ZN coating, mainly used in auto parts, such as Motors etc.
Coating:Phosphate Ni, NICUNI , bright NI, Dark Ni, Chemical NI, Zn, etc..

Production Process:

permanent magnet sintered NdFeB magnets N35 to N50 different grades

NdFeB Segment, ZN coating, mainly used in auto parts, such as Motors etc.

Coating can be:Phosphate Ni, NICUNI , bright NI, Dark Ni, Chemical NI, Zn ,

Blue Zn, Color Zn, Gold, Silver, , Epoxy, NI+ Epoxy, Zn+ Epoxy, parylene, etc

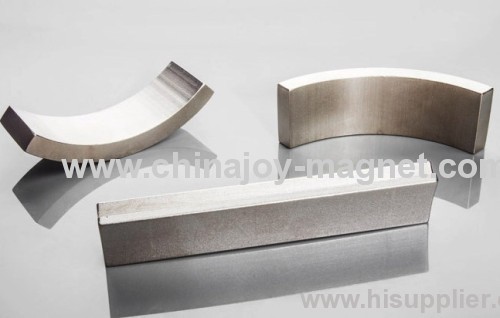

Product Photo:

permanent magnet sintered NdFeB magnets N35 to N50 different grades

Neodymium Iron Boron (NdFeB) magnets, the most powerful permanent magnets available today, possess high energy up to 52MGOe and wonderful coercive force.
1. Primary Material: Neodymium, iron, boron, rare-earth material
2. Maximum working temperature: 80-220 degree celcius
3. Density: 7.5 to 7.6g/CMM³
4. Application: Motors, Windmill, Acoustics, Magnetic separators, Auto, VCM, MRI, Mobile accessories
5. Grade available:
N35-N52, N33M-N50M, N30H-N48H, N30SH-N45SH, N28UH-N40UH, N328EH-N35EH, N30AH-N33AH

Strong Neodymium Iron Boron Magnet

High remanence, high coercive force, high energy, etc
High resistance to magnetic demagnetization
Excellent cost to performance ratio
Not suitable for application which exposed to high temperatures.
Widely used in mini-motors, wind generators, meters, sensors, speakers, magnetic suspension system, magnetic transmission machine and other industrial applications.
Very easy to corrosion in humid environments, so it is necessory to do the surface treatment according customers' requirements. We can offer the coatings, such as Zinc, Nickel, Nickel-copper-nickel, Silver, gold-plating, Epoxy coating, etc

Magnetic properties of main grades
