Permanent Ferrite Magnets Cup Magnets from China manufacturer - Ningbo Joy Industrial & Trading Co.,Ltd.

Price:	0.2~10.0 USD
Payment Terms:	T/T,L/C,
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 2 inch Cup Ferrite Magnets

Production Capacity: 100 Metric Ton/Metric Tons ...

Delivery Date: 15-20 days

Application:: Inductors,Transformers,

Grade: C8

Place of Origin: Zhejiang,China (Mainland)

Cutting Tolerance: +/-0.1mm

Brand Name: Joy

Means of Transport: Ocean,

Packing: According to customer's req...

Type: Permanent

Shape: Cup

Size: 2 in

Export Area: All of the World

Magnetization: Through thickness

Material:
Permanent Magnet
Ferrite Magnet,Rare earth magnet
Shape:Cup
As the request of clients
Magnet: C8 Ceramic magnet ring

Product Description:

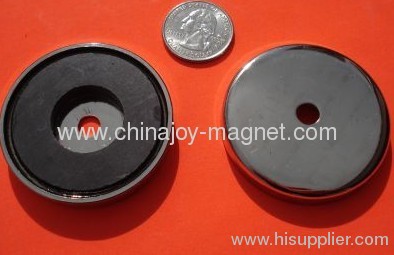

Cup magnets are made from strong ceramic magnet C8 Grade, This handy and useful ceramic cup magnet is embedded inside a Nickel coated steel cup to offer the maximum gripping power. The steel cup offers protection for magnet and make the magnetic force concentrated on the magnet surface.

Ceramic cup magnets are widely used in industrial applications such as fastening, holding, hanging or retrieving objects, etc.

Ceramic Cup Magnets Size: 2" Diameter x 0.3" thick with 0.26" hole (OD 51.5 mm x ID 6.5mm x 7.7 mm)

Magnet: C8 Ceramic magnet ring

Cup Coating: Nickel

BrMax: 3850 gauss

Magnetized through thickness, poles on the flat surface

Holding power: 40 lbs

Note: holding power should be tested for your specific application

High quality Ferrite Magnets

Advantage:
1)High magnetic flux density,
2)Excellent corrosion resistance
3)Raw material is readily available, low in cost

Ceramic magnetic material is made of a composite of iron oxide and barium/strontium carbonate.

The material is one of the most cost effective magnetic materials maunfactured in industry. The low cost is due to the cheap, abundant, and nonstrategic raw material lend themselves to large production runs. This magnetic material has a fair to good resistance to corrosion and it can operate in moderate heat.

Application:

Ceramic magnets can be found in a wide variety of applications. Motors Loudspeakers Separators

Ferrite Magnetic Assemblies designed for lifting, holding and retrieving.

Hard sintered ferrite magnet, made by molding powder mixture of about 80% Fe2O3 and about 20% either BaCo3 or SrO3, is also called ceramic magnet. Along with deepening of research, some additives such as cobalt (Co) and lanthanum (La) are mixed together to improve the magnetic performance. The molded powder metallic green is sintered inside a temperature controlled furnace what is heated with electricity or coal. Though hard ferrite magnet is with low magnetic property, it is still a preferable choice to engineer in their design due to several factors: abundantly available raw material,the cheapest cost among permanent magnet family, low density, excellent stability of chemistry, high maximum working temperature and Curie temperature.

Magnetic properties of main grades:

Material	Br		HcB		HcJ		(BH)max
Material	mT	KG	KA/m	KOe	KA/m	KOe	Kj/m³	MGOe
Y10T	200~235	2.0~2.35	125~160	1.57~2.01	210~280	2.64~3.52	6.5~9.5	0.8~1.2
Y20	320~380	3.2~3.8	135~190	1.70~2.38	140~195	1.76~2.45	18.0~22.0	2.3~2.8
Y22H	310~360	3.1~3.6	220~250	2.77~3.14	280~320	3.52~4.02	20.0~24.0	2.5~3.0
Y23	320~370	3.2~3.7	170~190	2.14~2.38	190~230	2.39~2.89	20.0~25.5	2.5~3.2
Y25	360~400	3.6~4.0	135~170	1.70~2.14	140~200	1.76~2.51	22.5~28.0	2.8~3.5
Y26H	360~390	3.6~3.9	220~250	2.77~3.14	225~255	2.83~3.21	23.0~28.0	2.9~3.5
Y27H	370~400	3.7~4.0	205~250	2.58~3.14	210~255	2.64~3.21	25.0~29.0	3.1~3.7
Y30	370~400	3.7~4.0	175~210	2.20~2.64	180~220	2.26~2.77	26.0~30.0	3.3~3.8
Y30BH	380~390	3.8~3.90	223~235	2.80~2.95	231~245	2.90~3.08	27.0~30.0	3.4~3.7
Y30H-1	380~400	3.8~4.0	230~275	2.89~3.46	235~290	2.95~3.65	27.0~32.0	3.4~4.0
Y30H-2	395~415	3.95~4.15	275~300	3.46~3.77	310~335	3.90~4.21	28.5~32.5	3.5~4.0
Y32	400~420	4.0~4.2	160~190	2.01~2.38	165~195	2.07~2.45	30.0~33.5	3.8~4.2
Y33	410~430	4.1~4.3	220~250	2.77~3.14	225~255	2.83~3.21	31.5~35.0	4.0~4.4
Y35	400~410	4.00~4.10	175~195	2.20~2.45	180~200	2.26~2.51	30.0~32.0	3.8~4.0
