Permanent Neodymium Cup Magnets M4 Female Threade from China manufacturer

Permanent Neodymium Cup Magnets M4 Female Threade

Price:	0.1~5.0 USD
Payment Terms:	T/T,L/C,
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Cup Magnt 3/4" Diameter

Production Capacity: 1,000,000pcs/month

Delivery Date: 15-20 days

Composite: NdFeB

Shape: Cup

Platings: Ni,Zn,Au,Cu

Brand Name: Joy

Export Area: All of the World

Means of Transport: Ocean,Air,

Packing: According to customer's req...

Type: Permanent

Application: Industrial Magnet

Size: 3/4 inch

Place of Origin: Zhejiang, China (Mainland)

Product Name: Cup Magnet

Strong Neodymium Cup Magnets
Size: 19 mm Diameter x 6.5 mm thick
with 6 mm x 6 mm M4 Threaded Female
Stud 3/4" Diameter x 0.26" thick.

Product Description:

Neodymium Cup Magnets with M4 Female Threaded Stud 3/4 inch Diameter 26 lbs Holding Power

Made with the strongest magnets - neodymium magnets, much stronger than ceramic magnets.

Neodymium Cup magnets are made from neodymium magnets, the world's strongest magnets. Neodymium cup magnets provide much stronger holding power than ceramic cup magnets.
This handy and useful strong neodymium cup magnet has a strong magnet embedded inside a Nickel coated steel cup to offer the maximum gripping power. The steel cup offers protection for the magnet and concentrates the magnetic force on the magnet surface.The cup magnet has a threaded female stud that is perfect for mounting with a bolt or screw.

Strong Neodymium Cup Magnets Size: 19 mm Diameter x 6.5 mm thick with 6 mm x 6 mm M4 Threaded Female Stud 3/4" Diameter x 0.26" thick with 0.24" x 0.24" M4 Threaded Female Stud.

neodymium cup magnets are widely used in industrial applications such as fastening, holding, hanging or retrieving objects, etc.

Threaded Female Stud Diameter: 0.24 inch
Threaded Female Stud Height: 0.24 inch
Cup Diameter: 0.75 inch
Cup Height: 0.26 inch

Threaded female stud is for M4 screw.

Coating: Nickel

Magnetized through thickness, poles on the flat surface

Estimated Pull Force: 26 lbs

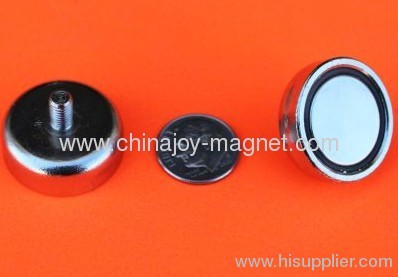

Neodymium Cup Magnets w/M4 Female Stud 3/4

Neodymium Cup Magnets w/M4 Female Stud 3/4

With steel shield can protect magnets well
Series of Grades
N35-N52, 35M-50M, 33H-50H, 30SH-45SH, 28UH-42UH,28EH-38EH and 30VH-33VH.

Neodymium Cup magnets are made from neodymium magnets, the world's strongest magnets. Neodymium cup magnets provide much stronger holding power than ceramic cup magnets.
This handy and useful strong neodymium cup magnet has a strong magnet embedded inside a Nickel coated steel cup to offer the maximum gripping power. The steel cup offers protection for the magnet and concentrates the magnetic force on the magnet surface.The cup magnet has a countersunk center hole that is perfect for mounting with a flat head screw or bolt.

Series of Grades

N35-N52, 35M-50M, 33H-50H, 30SH-45SH, 28UH-42UH,28EH-38EH and 30VH-33VH.

Coating
Zn, Ni, NiCuNi, Sliver, Epoxy, etc.

Performance Range ofMagnets
Br:from 11.400 Gauss to 14.700 Gauss

Hcj: from11.000Oe to 30.000Oe

BH (max): from 30GOe to 52MGOe

Applications
Sensors, Motors,Rotors, Wind turbines/generators, Loudspeakers, Magnetic hooks & holder,Filters, Automobiles, Magnetic separators etc.
